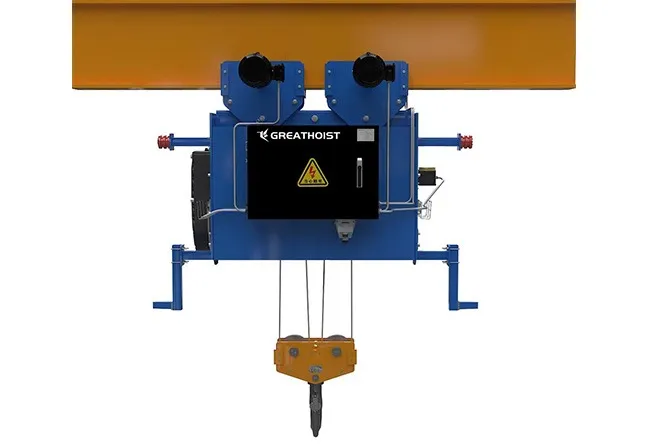

OHFM Model European Design Hoist
Introduction
This product is designed for the new pickling galvanizing industry special products, low headroom compact, suitable for acid house and track limited sites, can maximize the effective lifting height; It owns following features.
Advantages
Low headroom, compacted design
Double electron limit
Electron limit plus spiral limit
Protection class IP55
Working class M5 or M6
Applicable place: acid house and track limited sites
Purpose: special for pickling and galvanizing industry
Parameter
| Capacity (t) | 3 | 5 | 10 |
| Hoisting Height (m) | 6-12 | 6-12 | 6-12 |
| Reeving Ratio | 2/4 | 2/4 | 2/4 |
| Hoisting Speed (m/mm) | 1-10 | 1-10 | 0.8-8 |
| Hoisting Motor (kw) | 6.1 | 9.5 | 16 |
| Traveling Speed (m/mm) | 0-20 | 0-20 | 0-20 |
| Traveling Motor (kw) | 0.37*2 | 0.37*2 | 0.75*2 |
| Steel Wire Rope | IWR | IWR | IWR |
| IP Protection | IP54/55 | IP54/55 | IP54/55 |
| Insulation Class | F | F | F |
| Class | M5 or M6 | M5 or M6 | M5 or M6 |
| Operation | Remote Control/Full Automatic | ||
| Power Supply | 3Ph,380V,50Hz | ||
Dimensi
