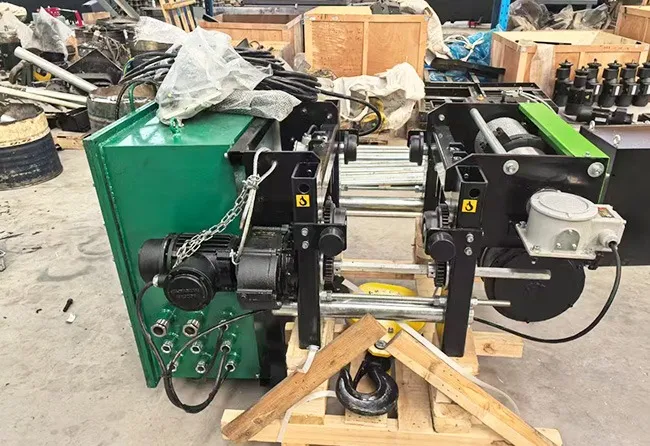

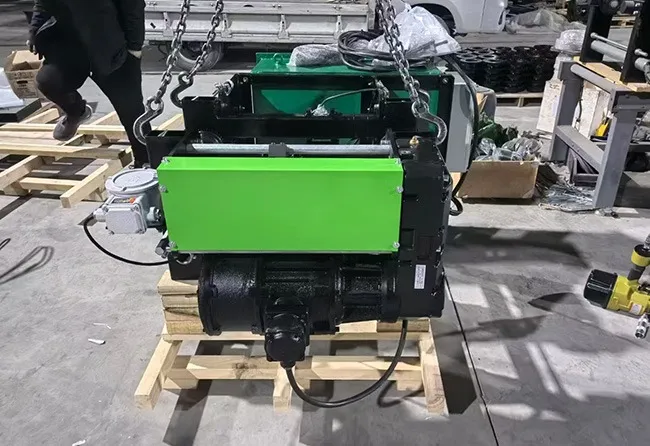

Single Girder EX-proof Hoist- Low Headroom
Introduction
Main Features
• Hoist type: Explosion proof
• Certificate: GB, ATEX etc.
• Lifting Capacity: 0.5~12.5t, customized
• Customized Capacity: 15t, 16t, 20t
• Lifting Height: 3~35m, customized
• M5 / M6 class, F.E.M, DIN, EN standard
Parameter
| Capacity (t) | 3.2 | 5 | 10 | 16 | 20 |
| Hoisting Height (m) | 6-18 | 6-18 | 6-18 | 6-18 | 6-18 |
| Ratio | 4/1 | 4/1 | 4/1 | 4/1 | 4/1 |
| Hoisting Speed (m/mm) | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| Hoisting Motor (kw) | 0.45/3.2 | 1/6.1 | 1.5/9.5 | 9.5 | 5/20 |
| Traveling Speed (m/mm) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Traveling Motor (kw) | 0.64 | 06.4 | 0.96 | 2*0.64 | 2*0.96 |
| Duty Class | 2m(M5) | 2m(M5) | 2m(M5) | 2m(M5) | 1A(M4) |
| Operation | Pendent Control/Remote Control | ||||
| Power Supply | 3Ph,380V,50Hz or customized | ||||
Dimensi
